Brakes: Introduction and Rim Brakes



Prev: Spokes and Rims Next: Drop handlebar brake cable

Rim brakes stop a bike by contacting the rim of the wheels. Pads must be checked to ensure that they contact the rim fully and at the same time, and replaced when they are worn. Brake cables must be checked and lubricated regularly.

The three most common types of rim brake—V-brake, cantilever, and caliper—work in similar ways. A lever pulls a cable, which causes the two brake arms to move toward each other simultaneously. This action brings the two pads into contact with the braking surface of the wheel rim. Springs cause the arms to move back when the lever is released. Cantilever brakes distribute the cable’s pull via a straddle wire. The inner cable in a V-brake and caliper pulls one arm, while the outer, in resisting this pull, effectively pushes the other arm.

Braking safely: Rim brakes must be set up properly and maintained to very high standards if they are to work effectively and safely on any surface and in all conditions. More on braking safely here.

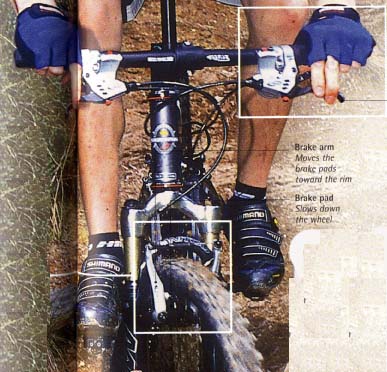

Image (below) shows:

  • Brake lever: Pulls the cable
  • Brake arm: Moves the broke pads toward the rim
  • Brake pad: Slows down the wheel

Braking safely

How a V-Brake works

The cable of a V-brake is attached to a brake arm by a cable-clamp bolt. When pulled, the cable pulls this arm toward the rim. At the same time, the cable-guide tube, which is an extension of the cable housing, pushes the other arm inward. The two arms pivot around the brake bosses, pushing the brake pads against the braking surface on the rim. Once the cable’s pull is released, springs around the pivot bolts push the brake arms apart.

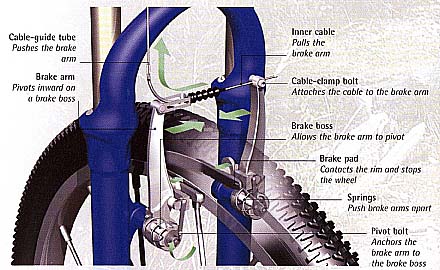

V-Brake Components:

  • Cable-guide tube: Pushes the brake arm
  • Brake arm: Pivots inward on a brake boss
  • Cable-clamp bolt: Attaches the cable to the brake arm
  • Brake boss: Allows the brake arm to pivot
  • Brake pad: Contacts the rim and stops the wheel
  • Springs: Push brake arms apart
  • Pivot bolt: Anchors the brake arm to the brake boss
V-Brake Components

How a Brake Lever works

When the rider applies the brake lever, it pulls the nipple of the inner cable. As it leaves the lever, the brake cable runs inside a cable housing, which leads to a barrel adjuster. The adjuster allows the brake travel to be fine-tuned.

Components of a Brake Lever:

  • Nipple: Fixes inner cable to brake lever
  • Inner cable: Links the brake arm to the brake lever
  • Barrel adjuster: Adjusts brake travel
  • Cable housing: Resists the pull on the cable
  • Brake lever: Pulls the nipple

Components of a Brake Lever
